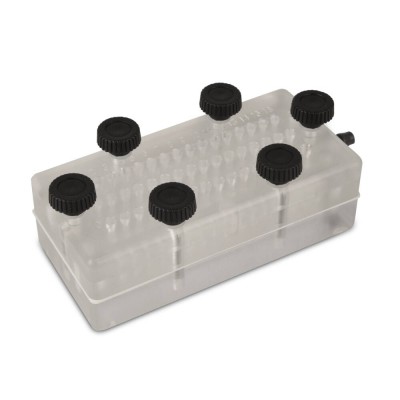

Dot Botter, 48 Sample
Opis
- Low cost
- Simple construction
- Easy assembly
- Four sample configurations
- Alpha-numeric sample identification
Four different sample number size and style of Hybridisation Manifold are offered:- two types of dot blotter and two types of slot blotter.
Typical applications include clone screening with DNA / RNA probes in Southern/northern blots and immunological screening with antibodies in western blots.
The units incorporate precision lapped surfaces to ensure uniform blotting membrane contact and a leak proof gasket. These prevent lateral transfer of samples – smudging – by ensuring that a complete vacuum is formed. Six thumbscrews ensure even and tight sealing for fast sample suck down.
Dot blotters are available in 48 and 96 well versions and slot blotters in 24 and 48 well.
| Model | CSL-D48 | CSL-D96 | CSL-S24 | CSL-S48 |
| Configuration | 3 x 16 | 8 x 12 | 2 x 16 | 3 x 16 |
| Size of well | 6 mm diameter 12 mm deep | 6 mm diameter 12 mm deep | 6 x 05 mm diameter 12 mm deep | 6 x 05 mm diameter 12 mm deep |
| Vacuum required | 600 mg Hg 0.8 BAR with cold trap | |||
| Unit dimensions | 6 x 9,5 x 10 cm | 6 x 10,5 x 14 cm | 6 x 7,4 x 8,3 cm | 6 x 9,5 x 10 cm |
| Membranes size required | 12.1 x 4.4 cm | 11 x 7.4 cm | 12.1 x 4.4 cm | 12.1 x 4.4 cm |
Dane techniczne
| Opakowanie | szt. |
