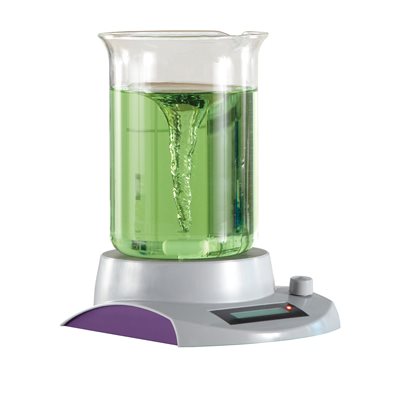

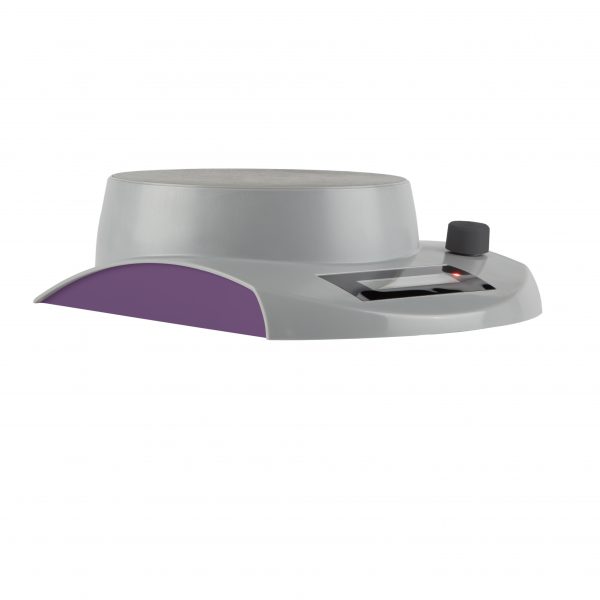

Magnetic Induction Stirrer

The Magnetic Induction Stirrer uses modern magnetic coil technology that has no moving parts resulting in a motor-less wear-free drive and maintenance free unit. High-quality rare-earth magnets are used in the stirrer design to ensure a strong magnetic coupling with consistent accurate alignment which significantly reduces the chance of spin-outs.

•     Durable ABS housing is corrosion resistant and easy to clean
•     Wear-free magnetic coils offer consistent and noiseless operation
•     An easy to read digital display precisely controls time and speed enabling reproducible conditions
•     Unit is programmable with 50% duty up to 99 cycles
•     Time and speed can be conveniently adjusted while the unit is running
•     Reverse rotation option for better mixing results
•     Speed remains constant, even when load changes
•     Rapid acceleration and braking (less than 10 seconds) to quickly meet stirring speed requirements
•     Silicone rubber mat on lid prevents slipping of vessels and improves safety
•     Included stir bars have PTFE coating for chemical resistance

Package Includes: Magnetic Induction Stirrer, 2 Stir bars 35L mm x 12DIA. mm Cylindrical Shape, 1 low voltage, double insulated power adapter with 4 interchangeable plugs

Specification

•     Speed Range: 10 to 2,000rpm
•     Run Time Ranges:
•     Stirrer Mode: 0’30” to 60’0” or continuous
•     Oscillating Mode: 0’30” to 60’0” and 1–99 cycles
•     Oscillating Period: 50% duty cycle
•     Capacity: 3 Liters PlU.S.
•     Mixing Surface: Approx. 160 mm in diameter
•     Weight: 1.13 kg (2.50 lb.)
•     Electrical:
•     Power Adapter Rating:
•     Input: 100-240 VAC 50/60 Hz 1.0A
•     Output: 12 VDC 2.2A
•     Stirrer Rating:
•     Input: 12 VDC
•     Current (under load): Approx. 1.5 A
•     Power: Approx. 18W
