Description
- The gelONE is the ultimate in simplicity, with automated acquisition through an intuitive touch screen interface.
- Compatible with both traditional DNA stains and safe stains, the gelONE is suitable for any lab.
- 5 Megapixel camera gives excellent low light sensitivity for clear resolution of closely spaced DNA bands and ensures even low levels of fluorescence are detected
- The 20 x 24 cm imaging area means even large gels can be imaged with ease.
- Images are captured using the built in software, and saved direct to USB memory stocks for transfer to PC. The geneQUANT advanced image analysis package is included with all systems license free.
Applications
The NEW gelONE-XE is a stand-alone gel documentation system which replaces both the gelONE and the gelONEPLUS previously offered in our range.
It comes with a powerful New Window Operating system that allows smoother running of the software and image acquisition. It is also now possible to store the images directly on the system thanks to the 80gb hard drive internal memory.
The new touchscreen PC comes with 5 USB connectivity ports which can connect directly to a printer, mouse or keypad if desired.
It is also now possible to network through a LAN port without the requirement of the optional USB-Dongle saving on this cost. The enhanced camera is now able to capture stain free gel images as standard (before only the gelONEPLUS was suitable to this application).
The higher sensitivity lens and camera sensor on the gelONE-XE also provide higher resolution images compared to its predecessors.
The gelONE XE system has been designed for stain free applications, it also supports multiple applications, including DNA/RNA gel imaging such as EtBr, SYBR Green and visible stained gels, i.e. Coomassie Blue and silver stain. The geneQUANT advanced image analysis package is included with the system license free.
Product Includes: gelONE Imaging System, UV Transilluminator, UV filter, software USB with gelQUANT software, power cable and Instruction manuals

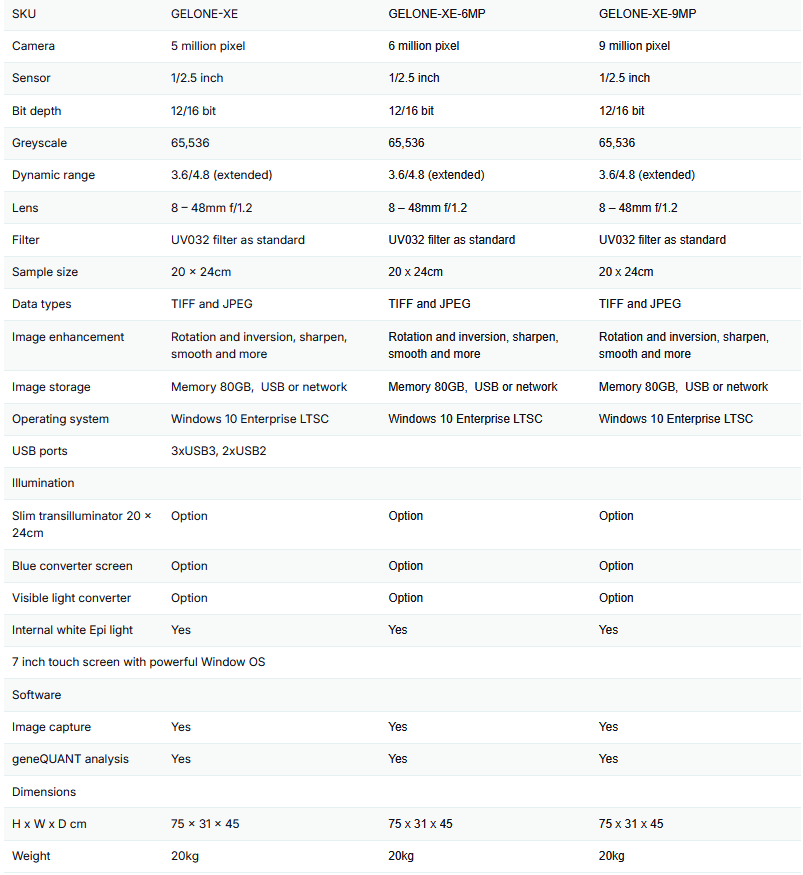

Specification:
