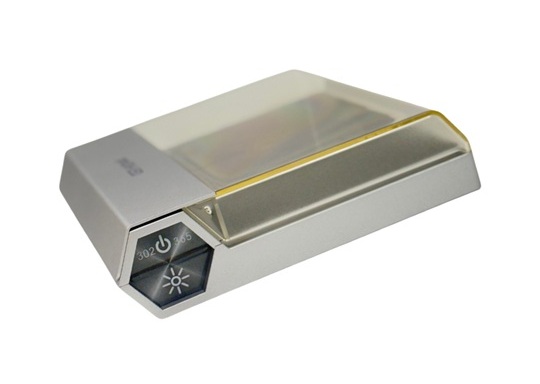

TRANSILLUMINATOR 365/302/300nm LED 21 x 13cm

This UV-LED system replaces traditional mercury lamps with long-lasting, energy-efficient LEDs for safer and more eco-friendly operation. Its triple-wavelength backlit design (300/302/365 nm) provides uniform, adjustable illumination for a wide range of fluorescent dyes and stains.

A compact, durable build with brightness control, light shielding, and automatic safety power cut-off ensures easy operation and user protection. Paired with a mini darkroom, it enables fast, clear observation and imaging.

Ideal for nucleic acid and protein analysis, it supports applications across molecular biology, proteomics, and education—making it a versatile tool for today’s life science labs.

Key Features

Triple-Wavelength UV (365 / 302 / 300 nm)
Supports a wide range of dyes and applications in life science and molecular research.

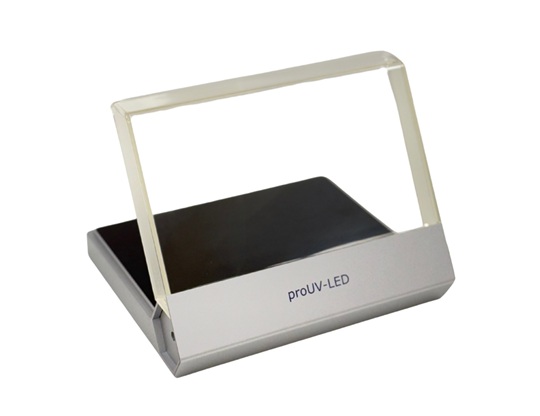

Magnetic UV-Shielding Lid
Hinge-free magnetic cover for easy use, safe sample viewing, gel cutting, and imaging.

Auto Power-Off Safety
Shuts down automatically when the lid is removed.
Timed auto shut-off: 5 min (365/302 nm), 7 min (300 nm).

Bottom-Illuminated LED Design
Long-life, maintenance-free LEDs deliver uniform, low-refraction lighting for clearer images.

Three-Level Brightness Control
Adjustable brightness in 302 nm and 365 nm modes for optimal contrast.

Durable & Lightweight
Robust alloy housing designed for both lab and field use.

Specification:

Unit Dimensions (W×L×H): 23.0 × 20.1 × 5.1 cm
Viewing Area (365nm/302nm Modes): 21.0 × 13.0 cm
Viewing Area (300nm Mode): 12.0 × 10.0 cm
Light Source: Built-in UV LED modules
Emission Wavelengths: 365 nm, 302 nm, 300 nm
LED Lifespan: > 5,000 hours
Operating Temperature: +5 °C to +40 °C
Storage Temperature: +4 °C to +50 °C
Filter Type: UV-blocking polycarbonate
Overvoltage Category: Category I (equipment supplied via AC adapter)

Power Adapter Input: 100–240 VAC ±10%, 50/60 Hz, 1.5–0.8 A
Power Adapter Output: 24 V DC, 2.5 A (60 W)
